Description

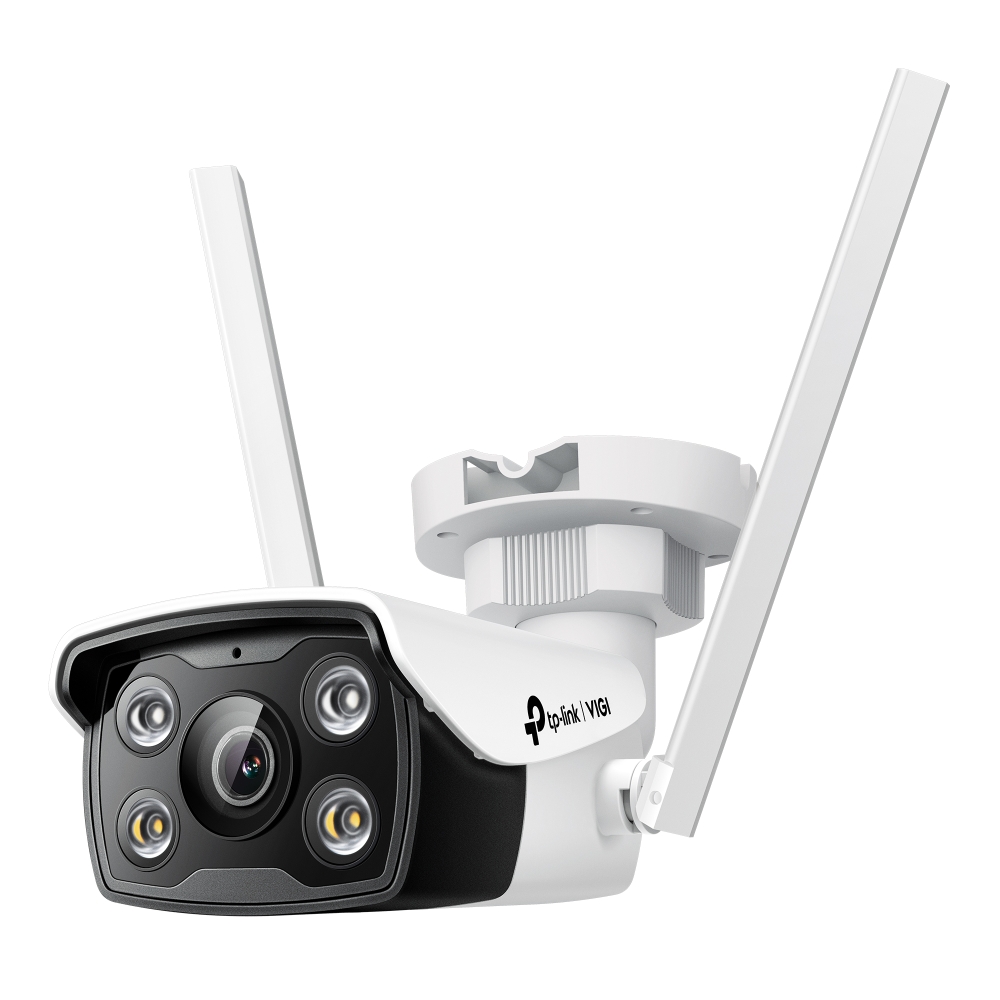

VIGI C340-W
VIGI 4MP Outdoor Full-Color Wi-Fi Bullet Network Camera
4MP Super-High Definition and 24h Full-Color
Wireless Outdoor Connection
Human & Vehicle Classification
Smart Detection
Smart Video Enhancement Technology
Active Defense and Two-Way Audio
IP66 Waterproof
H.265+ Compression Technology
Specifications
CAMERA
Image Sensor 1/3″ Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Aperture 4 mm: F1.6
Lens Fixed focal lens (4 mm)
Lens Mount M12
Minimum Illumination 0.005 Lux; 0 Lux with IR/white light
Day/Night Mechanism IR Cut Filter
Day/Night Switch Unified/ Scheduled/ Auto
Digital Noise Reduction 3D DNR
WDR DWDR
Weatherproof Rating IP66
IR Working Distance 30m
Illumination Distance 30 m
Viewing Angle (4mm) Horizontal FOV: 79 , Vertical FOV: 43 , Diagonal FOV: 93
LENS
Type Fixed Focal Lens
Focal Length 4 mm
Aperture F1.6
FOV Horizontal FOV: 80 , Vertical FOV: 43.2 , Diagonal FOV: 94.2
Lens Mount M12
DORI Distance
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
Angle Adjustment (Manual)
Range
Pan: 0 to 360
Tilt: 0 to 90
Rotation: 0 to 360
ILLUMINATOR
IR LED
Quantity: 2
Range: 30m
Wavelength: 850nm
White LED
Quantity: 2
Range: 30m
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution 2560 X 1440
Main Stream
Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720
Note: If the image rotation is set to 90 or 270 , the frame rate only supports up to 20fps.
Sub-Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
640×480, 352×288, 320×240
Note: If the image rotation is set to 90 or 270 , the frame rate only supports up to 20fps.
Bit Rate Control CBR, VBR
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate
Main Stream: 256 Kbps to 3 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image Settings
Mirror
Brightness
Contrast
Saturation
Sharpness, Exposure, WDR,
White Balance
Prevent Overexposure to Infrared Light
HLC Adjustable by Client Software
Rotation (90 /270 )
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range DWDR
SNR 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes
AUDIO
Audio Communication Two-Way Audio
Audio Input Yes
Audio Output Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
NETWORK
Protocol
TCP/IP
UDP
ICMP
HTTP
HTTPS
DHCP, DNS, RTSP
NTP
UPnP
SSL/TLS
FTP/SFTP
RTP
IPv4
IPv6
ARP
Wireless Rate 11 Mbps (802.11b)
54 Mbps (802.11g)
150 Mbps (802.11n)
Wireless Security WPA/WPA2-PSK
ONVIF Yes
API Open Network Video Interface (Profile S)
Simultaneous Live View 3 Main Streams & 3 Sub-Streams

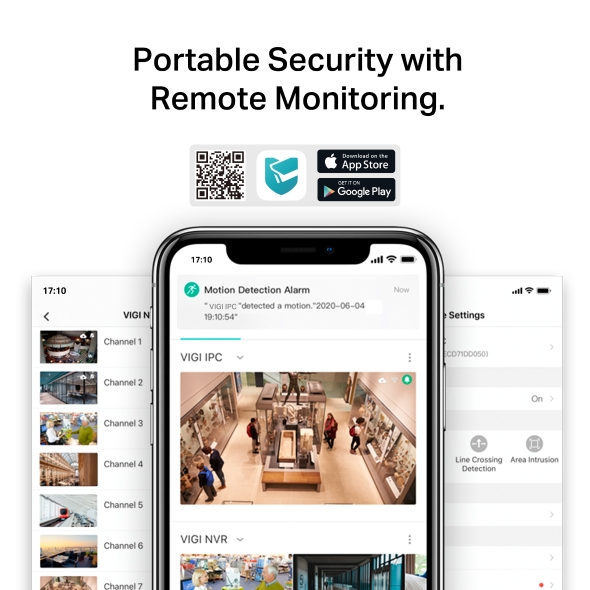

Client VIGI App, VIGI Security Manager, Web UI
Web Browser
Google Chrome 57 and above
Firefox 52 and above
Safari 11 and above
Microsoft Edge 91 and above
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Frequency 2.4 GHz
WIRELESS
Standards and Protocols IEEE 802.11b/g/n
WiFi Channels
UN: 1-13
US: 1-11
Frequency 2.4 GHz
Wireless Transmit Power High
Auto Wireless Channel N/A
Wireless Statistics N/A
Throughput Monitoring N/A
Radio Bandwidth
Auto: N/A
20M: Yes
40M: Yes
Wireless Rate
11Mbps(802.11b)
54Mbps(802.11g)
150/300Mbps(802.11n)
Wireless Security PWPA/WPA2-PSK
Wireless Mode AP, AP Client
ALARM AND EVENT MANAGEMENT
Smart Event
Human & Vehicle Classification
Intrusion Detection
Line-Crossing Detection
Region Entering Detection
Region Exiting Detection
Object Abandoned/Removal Detection
Scene Change Detection
Abnormal Sound Detection
People Detection
Vehicle Detection
Loitering Detection
Basic Event
Motion Detection
Video Tampering Detection
Exception ( Illegal Login)
Alarm Linkage
Memory Card Video Recording
Message Push
Audible Warning
White Light Flashing
Linkage Method N/A
Output Notification Message Push
INTERFACES
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
Audio Input Built-in Microphone
Alarm N/A
Reset Button Yes
Power DC Power Port
Slot Micro SD card
On-board Storage Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB
Built-in Microphone Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker Yes
Audio N/A
GENERAL
Operating Temperature -30-60 C
Storage Temperature -40-60 C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Weight 195g
Package Content
VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Power Adapter
Mounting Accessories
Dimensions( H X W X D ) 80 × 70.6 × 173.4 mm
Material Plastic
General Features Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Power Requirements 12V DC 5%, 5.5mm Coaxial Power Plug
Net Weight 0.38 Kg
Gross Weight 0.66 Kg
Max. Power Consumption 12V DC: Max 7W
Power Supply 9-12V DC/0.85-1.0A, 5.5mm Coaxial Power Plug
Antenna
Quantity: 2
Type: 2.4GHz Welded Dipole Omni-Directional Antenna
Gain: 2.0dBi
Protection IP66 Waterproof
Product Dimensions (L x W x H) 78.5 × 188.0 × 161.89 mm (3.09 × 7.40 × 3.67 in) (Including Antennas)
Certifications CE NTRA JRF VCCI BSMI NCC
VIDEO/IMAGE
Video Compression Main stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
Frame Rate & Resolutions Main Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560×1440, 2304×1296, 2048×1280, 1920×1080
Sub-Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640×480, 352×288, 320×240
Video Streaming Main Stream
Sub-Stream
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
Image Enhancement BLC/3D DNR/Prevent Overexposure to Infrared Light
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
SMART FEATURE-SET
Smart Event Area Intrusion Detection, Line-Crossing Detection, Human Detection
Basic Event Motion Detection, Camera Tampering Detection, Exception ( illegal login)
Linkage Method Trigger Notification: ONVIF, HTTPS
Region of Interest 1 Region
What’s in the box
1 x C340-W-4
1 x Power Adapter
1 x Waterproof Cable Attachments
1 x Mounting Accessories set
1 x Quick Start Guide
